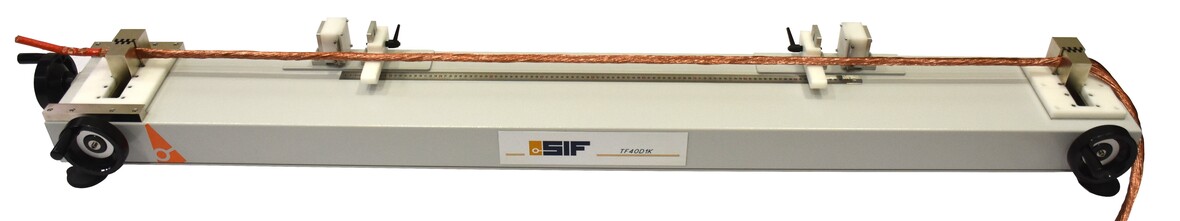

Connection system designed for connecting electrical cables and conductors used to measure electrical resistance in order to verify the resistivity of raw materials (copper, aluminum, or other materials) and to calculate the lengths of the cables.
Currently, three models are available:
- TF4D1K: for cross-sections up to 12 mm²
- TF12D1K: for cross-sections up to 125 mm²
- TF40D1K: for cross-sections up to 1250 mm²
Custom configurations can be created for different diameters and clamping sections, depending on the customer’s specific application and dimensional requirements.
Key features:
- robust mechanical structure to ensure high measurement accuracy
- quick clamping and adjustment via handwheels
- cable tensioning system with adjustment via handwheel
- multi-point clamping jaws for uniform current distribution
- contacts with low thermoelectric coefficient
- optimal current distribution thanks to the spacing between current and voltage contacts
- design engineered to ensure measurement reliability and repeatability
Measuring instruments are also available upon request and can be integrated into the system to perform electrical resistance measurements.
Request more information now!
Just email us at sales@sifmdc.com
